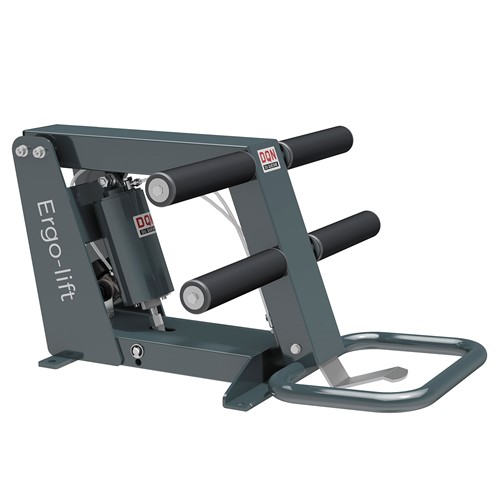

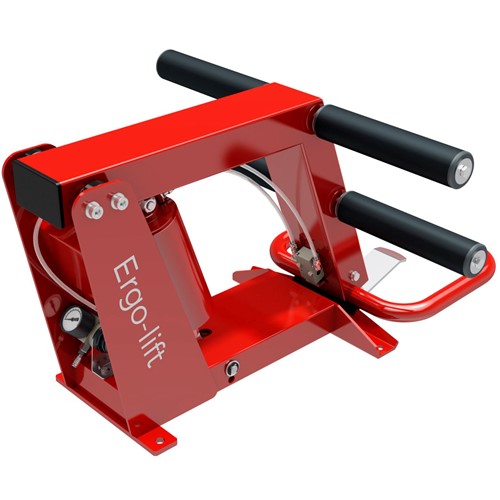

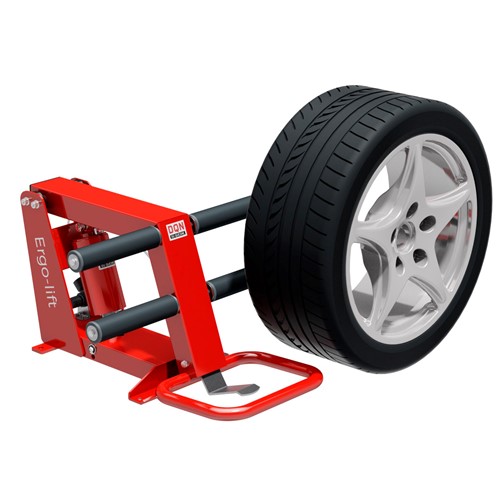

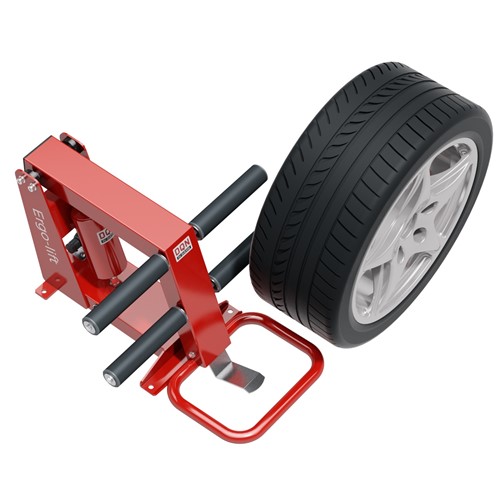

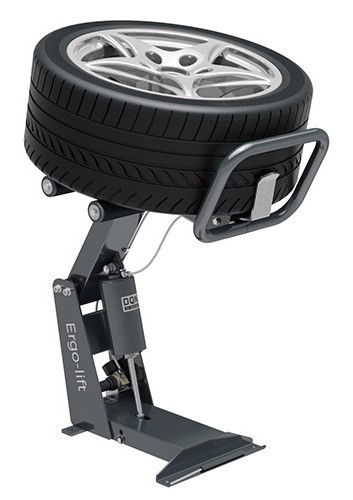

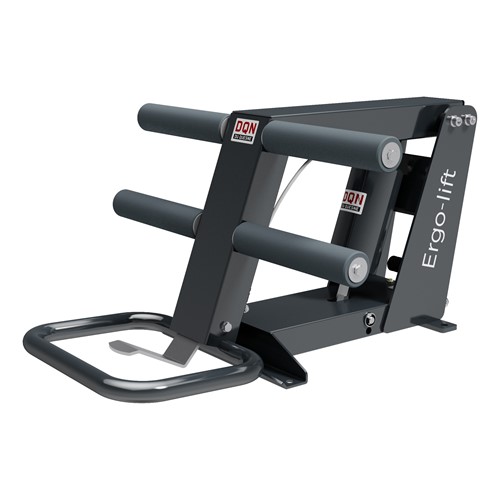

Ergo-lift
An ergonomic tyre lifter to lighten your workload!

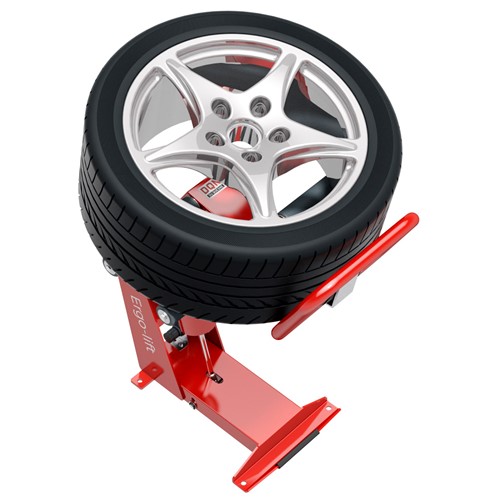

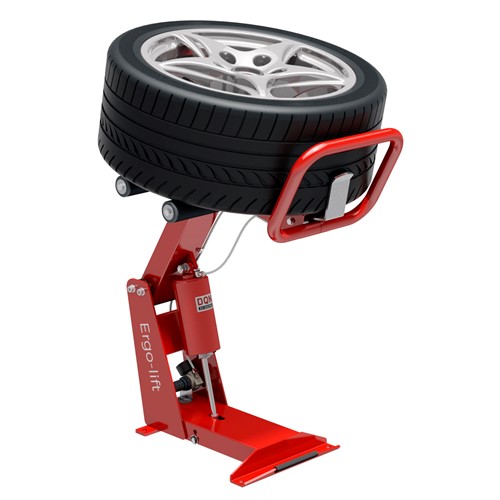

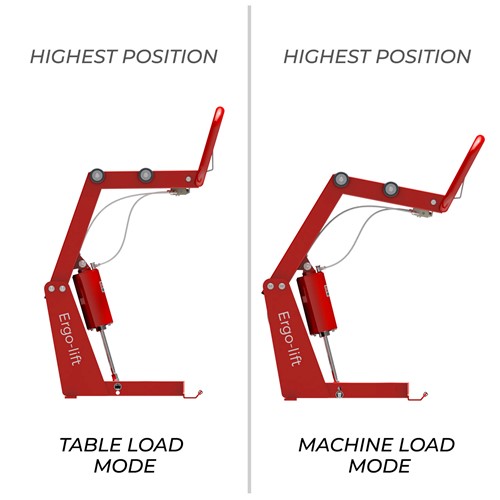

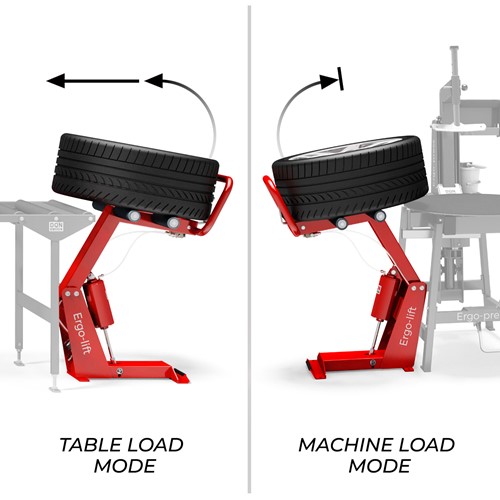

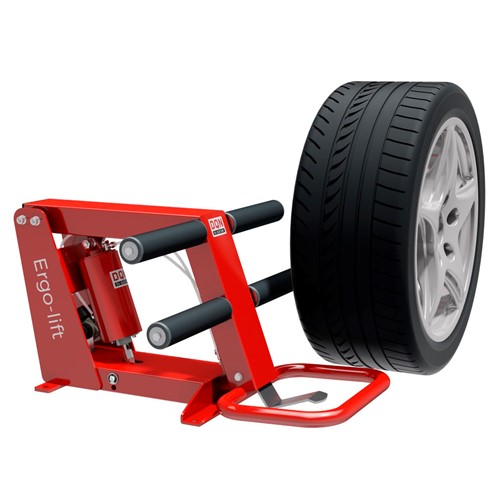

This self-activating elevator starts to operate as soon as a wheel is placed on it and goes down as soon as it is unloaded. In ‘‘Ergo-roll table load’’ mode, the tyre lifter rises to its maximum height without braking, providing the wheel with horizontal speed so that it moves forward onto the roller table. In ‘‘machine load’’ mode the tyre lifter stops at loading height and stays at a high position as long as the wheel has not been unloaded.
REF : EL
ERGONOMIC WHEELLIFT
SPECIFICATIONS
| MODEL | Ergo-lift |
| MAX TYRE WIDTH | 36 cm |
| MAX RIM WIDTH | 3’’ |
| MAX WHEEL WEIGHT | 60 Kg |
| LIFT HEIGHT | 76 cm |
| AIR PRESSURE | 7 bar |

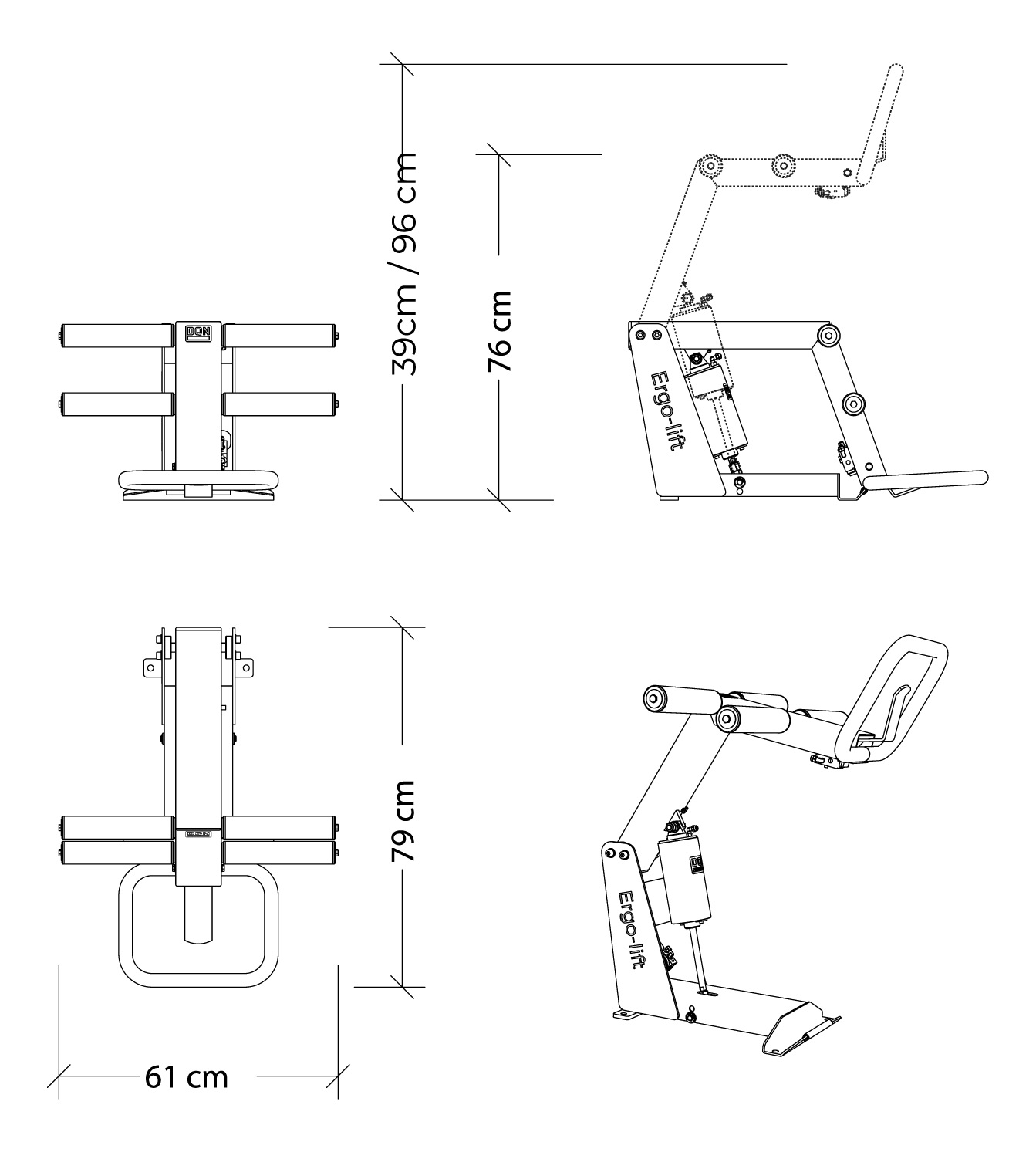

| DIMENSIONS (mm) | L 790/600 x W 610 x H 390/960 |
| WEIGHT | 26 Kg |

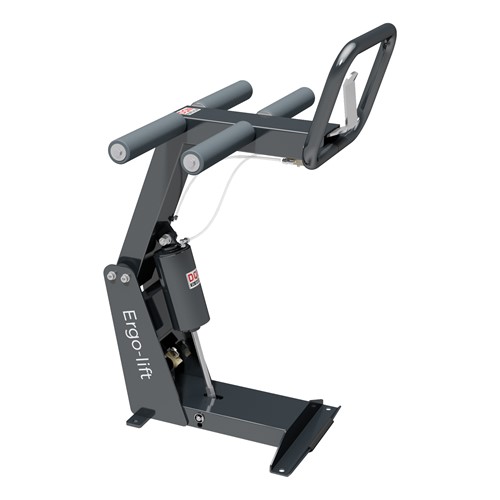

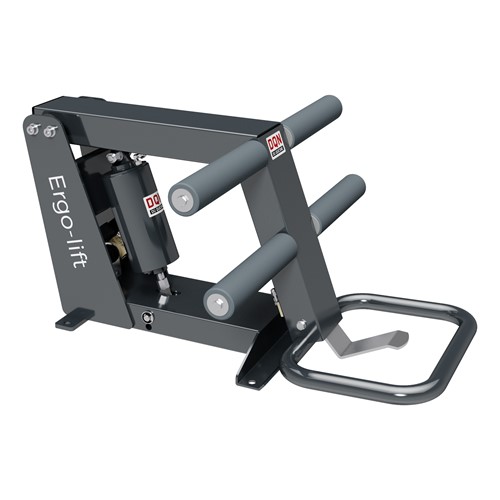

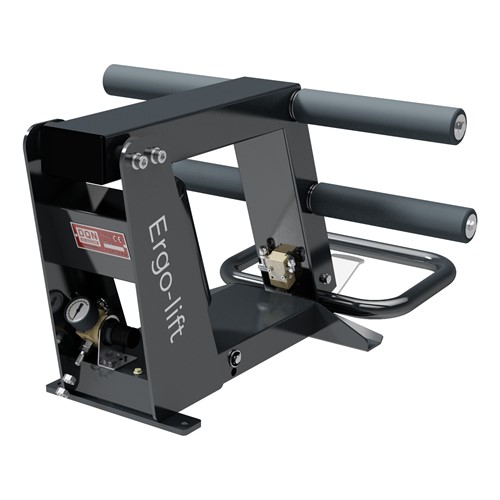

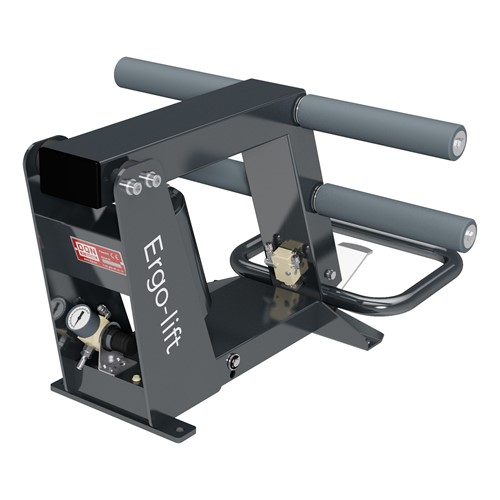

OPTIONS
These are some options or accessories to optimise the work of your tyre changer or assembly line.

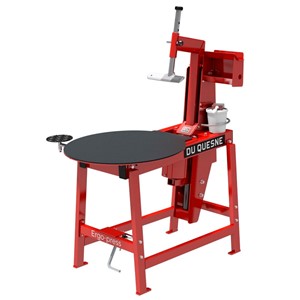

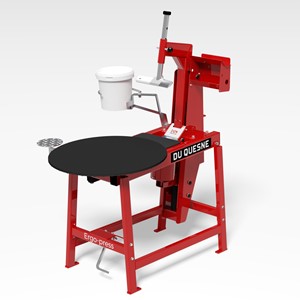

LINKED PRODUCTS
These are the related products that are an alternative or can be used in combination with your tyre changer or assembly line.
